Mini

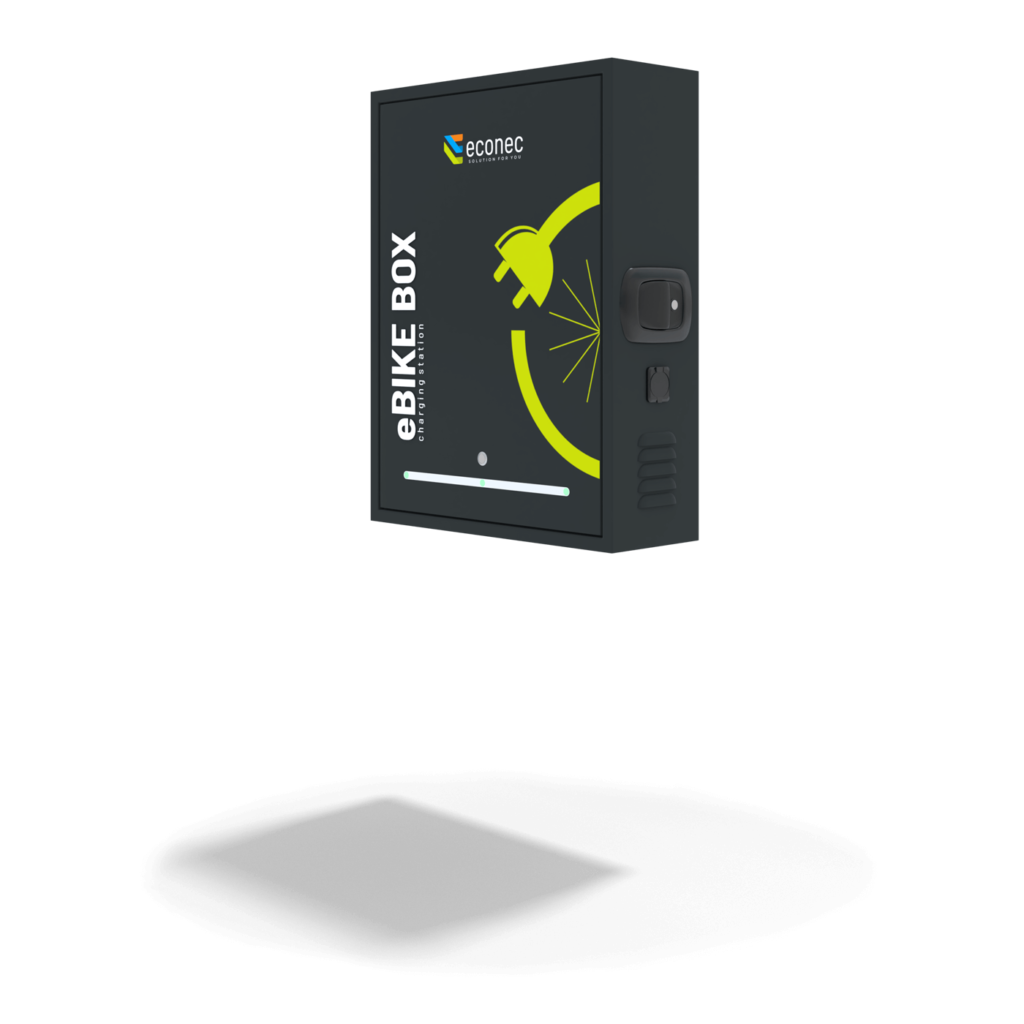

eBIKE BOX mini C
Includes up to 5 optional detachable connectors that connect from the bottom of the station. An ideal solution for hotels, restaurants, corporate car parks or shopping malls.
| Technical specification | |
| Dimension | 550 x 725 x 200 mm |
| Weight | 30 kg |
| Material | stainless steel/powder paint |
| Color | RAL 7016 |
| Input voltage | 230V/50 Hz |
| Input current | 6A |
| Charging light indicator | green/blue/red |
| Operating temperature | -20°C to 60°C |
| - | |
| basic equipment: | 1x Charging module Bosch * |
| 2x Schuko socket 230V/6A | |
| - | |
| Optional accessories: | Charging module Bosch |
| Charging module Bafang 2A | |
| Charging module Bafang mini 2A | |
| Charging module Shimano 2A | |
| Charging module Shimano 4A | |
| Charging module Specialized Brose 4A | |
| Charging module Specialized SL 4A | |
| Charging module Yamaha 4A | |
| Bicycle stand | |
| - | |
| * option of up to 5 modules |
| Technical specification | |
| Dimension | 550 x 725 x 200 mm |
| Weight | 30 kg |
| Material | stainless steel/powder paint |
| Color | RAL 7016 |
| Input voltage | 230V/50 Hz |
| Input current | 6A |
| Charging light indicator | green/blue/red |
| Operating temperature | -20°C to 60°C |
| - | |
| basic equipment: | 1x Charging module Bosch * |
| 2x Schuko socket 230V/6A | |
| - | |
| Optional accessories: | Charging module Bosch 4A |
| Charging module Bafang 2A | |
| Charging module Bafang mini 2A | |
| Charging module Shimano 2A | |
| Charging module Shimano 4A | |
| Charging module Specialized Brose 4A | |
| Charging module Specialized SL 4A | |
| Charging module Yamaha 4A | |
| Bicycle stand | |
| - | |
| * option of up to 5 modules |

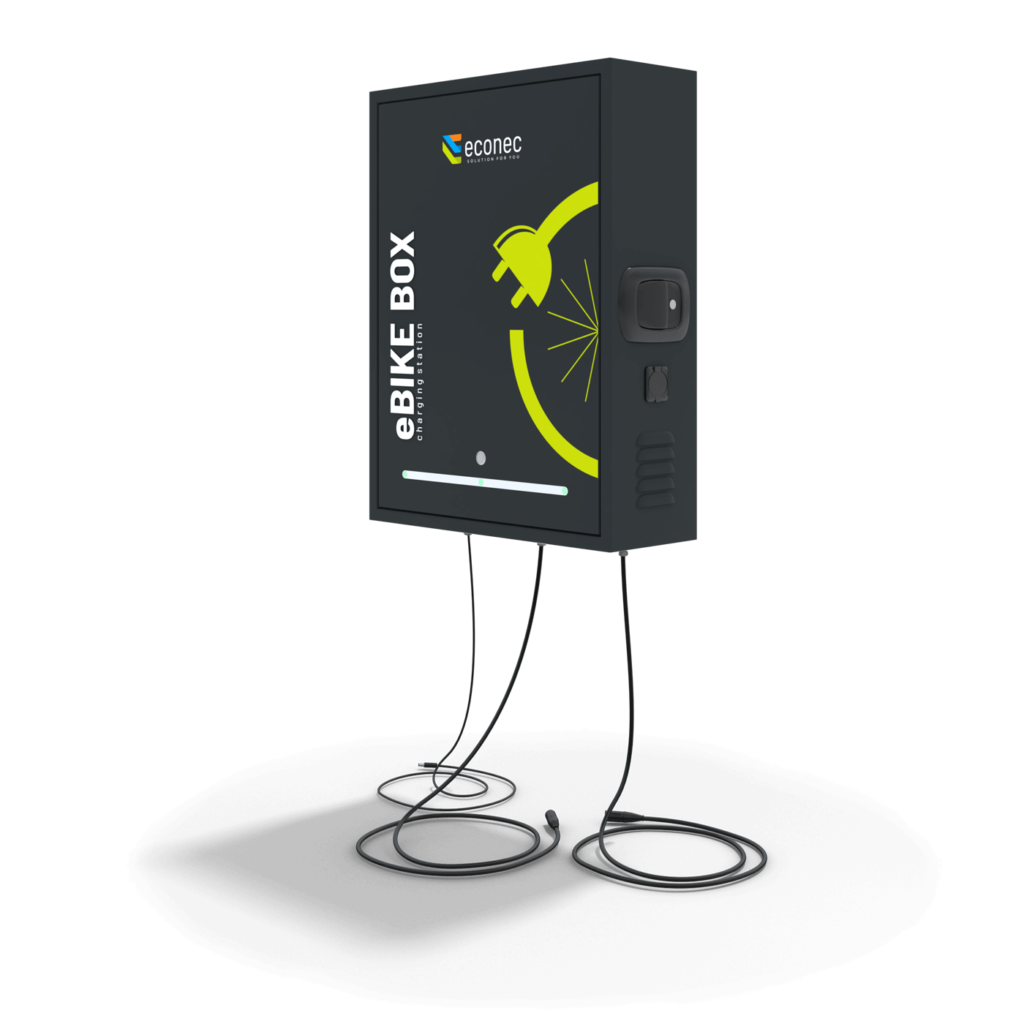

BIKE BOX mini F
The station allows you to configure 5 different types of charging ports depending on your choice. The charging plugs are permanently connected to the box.

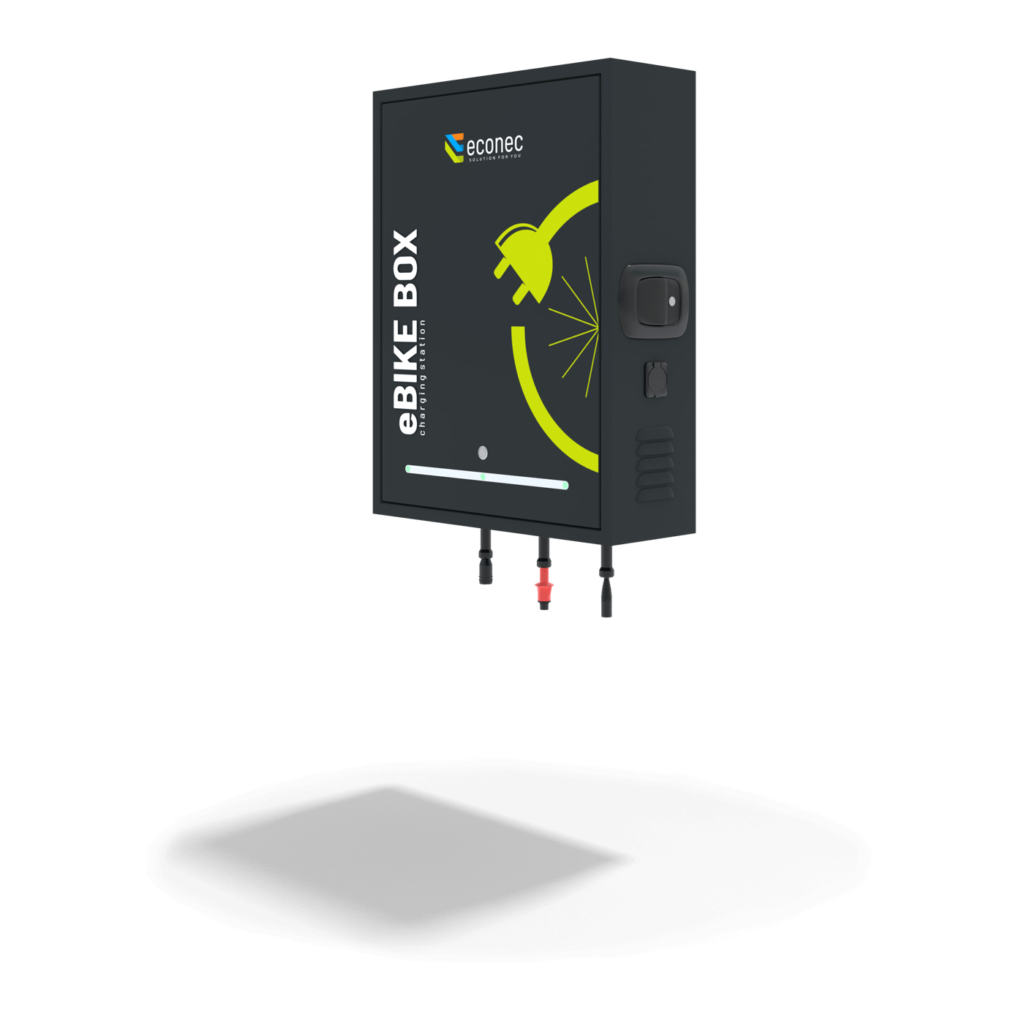

eBIKE BOX mini W
A special version of the mini station that includes 3 ports with a self-retracting system.
| Technical specification | |
| Dimension | 550 x 725 x 200 mm |
| Weight | 30 kg |
| Material | stainless steel/powder paint |
| Color | RAL 7016 |
| Input voltage | 230V/50 Hz |
| Input current | 6A |
| Charging light indicator | green/blue/red |
| Operating temperature | -20°C to 60°C |
| - | |
| basic equipment: | 1x Charging module Bosch * |
| 2x Schuko socket 230V/6A | |
| cable winding system, max. 3 | |
| Optional accessories: | Charging module Bosch 4A |
| Charging module Bafang 2A | |
| Charging module Bafang mini 2A | |
| Charging module Specialized Brose 4A | |
| Charging module Shimano 4A | |
| Bicycle stand | |
| - | |
| * option of up to 5 modules | |
